Maxx-D · Gooseneck Stock #146996

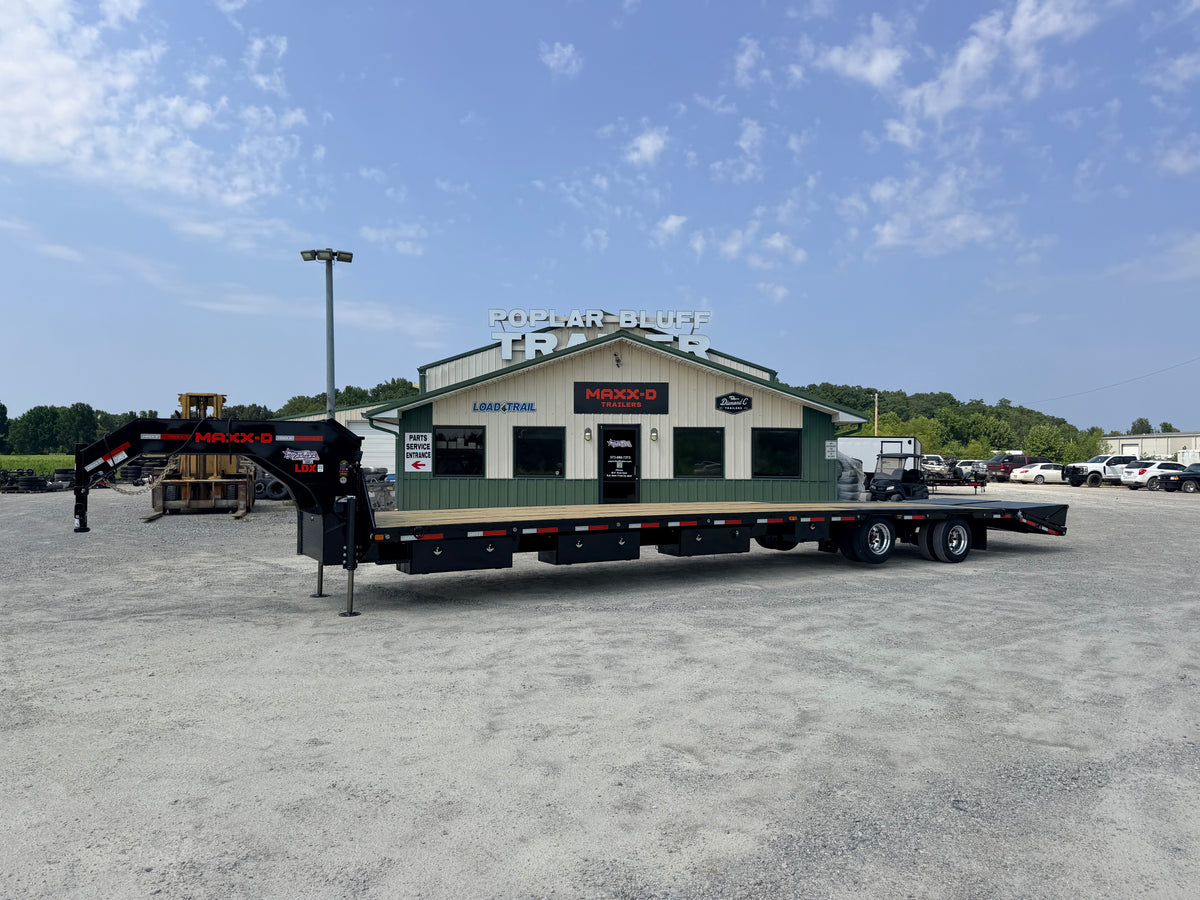

2027 New Maxx-D Gooseneck Trailer | 40' x 102" | 25990 GVWR | Air Ride | MAX Ramps | LDX10240
2027 New Maxx-D Gooseneck Trailer | 40' x 102" | 25990 GVWR | Air Ride | MAX Ramps | LDX10240
In StockSave $3,507
At a Glance

Built for car haulers, contractors & serious haulers

Stock#146996VIN5R8GF4024VM146996
40' x 102"Deck dimensions
2 x 15,000 lb Electric / Hydraulic BrakeElectric brake axles
Engineered I-Beam Frame with Integrated Torque TubeMain frame
5 yr / 2 yrStructural / comp.
01
Air ride heavy hauler. Ridewell air ride suspension, dual 15,000 lb electric/hydraulic brake axles, and a 25,990 lb GVWR support serious equipment loads.
02
Full-width loading access. The 5' dovetail and MAXXD-OUT MAX ramps create a wide loading surface for machinery and vehicles.
03
Equipped for jobsite use. Includes a Warrior 22K winch, dual hydraulic jacks, sealed wiring, solar charging, and multiple toolbox storage options.
Included with this unit
Matching spare tire + mountDual Lippert hydraulic jacksFlushmount LED lights2 rear facing cargo lightsWarrior 22K winch7-watt solar panel battery charging systemBattery power packNOCO battery chargerWireless remote48" side mount toolboxExtra 48" side mount toolboxDunnage box
Maxx-D · Gooseneck Stock #146996

2027 New Maxx-D Gooseneck Trailer | 40' x 102" | 25990 GVWR | Air Ride | MAX Ramps | LDX10240 40' low pro gooseneck built for heavy equipment hauling with air ride, dual 15K axles, and full-width MAX ramps.

$41,488
$44,995
Save $3,507
Est. financing from $—/mo · 60 mo · 8.99% APR
Length
40 ft
GVWR
25,990 lbs
Payload
15,680 lbs
Hitch
Gooseneck
Reserve This UnitIn Stock · Poplar Bluff MO
Balance due at pickup. Accepted: Cash, Check, Credit Card, Wire Transfer.
Request a Call
Questions? Talk to a real person: (573) 686-7273
Veteran Owned
4.9★★★★★
327 Google Reviews
2,400+
Trailers Sold
14 yrs
In Business
Maxx-D Shop all Maxx-D trailers
$41,488 or $—/mo
Reserve for $500

Apply for Financing

SOFT CREDIT CHECK · NO IMPACT TO SCORE

Flexible financing, built for haulers.

Get pre-qualified in minutes. Works with contractors, farmers, owner-operators, and everyone in between.

Terms from 24 to 84 months
Soft pull — no hard credit hit
Decision in under 60 seconds
Rent-to-own options available
Amount to be financed—
Down payment$0
Term length60 months
Estimated APR8.99%
Est. monthly payment
$—/mo
Does not affect your credit score. Powered by PBT Credit Partners.

Features & Specifications

MODEL LDX10240 40' x 102" · VIN 5R8GF4024VM146996
GVWR
25,990 lbs
Payload
15,680 lbs
Deck
40' x 102"
Axles
2 x 15K
Frame
Engineered I-Beam
Coupler
2-5/16"

Frame & Build

  • Main frameEngineered I-Beam Frame with Integrated Torque Tube
  • Cross-members3" I-Beam on 14" centers
  • NeckStandard Height Engineered Neck
  • Tool box48" Side Mount Toolbox, extra 48" Side Mount Toolbox and dunnage box
  • Floor2x8 Treated Wood
  • FinishWet Black & Primer Powder Coat

Axles, Tires & Towing

  • Axles2 x 15,000 lb Electric / Hydraulic Brake
  • SuspensionRidewell Air Ride with 72" Spread and Front Lift Axle
  • TiresDuals ST215/75R17.5 H-Rated Radial
  • SpareMatching spare tire and mount included
  • Coupler2-5/16" 30K Round Gooseneck Coupler

Loading & Electrical

  • Dovetail5' dovetail with MAXXD-OUT MAX Ramps
  • Tie-downsSliding ratchet bar with 1 ratchet per 4'
  • JacksDual Lippert Hydraulic Jacks
  • LightingFlushmount LED Lights and 2 Rear Facing Cargo Lights
  • WiringSealed Wiring Harness
  • Warranty5 Year Structural Warranty / 2 Year Comprehensive Warranty

Description

Maxx-D 40' x 102" Specifications

  • Model: LDX Low Pro Tandem Dual
  • Dimensions: 102" wide x 40' total length
  • GVWR: 25990 lbs
  • Trailer Weight: 10310 lbs
  • Floor: 2x8 treated wood
  • Color: Wet Black & Primer powder coat
  • Axles: 2 - 15000 lb electric/hydraulic brake axles
  • Suspension: Ridewell air ride with 72" spread and front lift axle
  • Tires: ST215/75R17.5 H-rated radial duals
  • Wheels: 4 aluminum and 5 steel
  • Spare: Matching spare tire and mount included
  • Main Frame: Engineered I-beam with integrated torque tube
  • Outer Frame: 6" channel
  • Neck: Standard height engineered neck
  • Cross-Members: 3" I-beam on 14" centers
  • Structural Upgrades: Hot shot riser box with chain rack
  • Storage: 48" side mount toolbox, extra 48" side mount toolbox, and dunnage box
  • Winch: Warrior 22K integrated in neck
  • Dovetail: 5' dovetail
  • Ramp System: MAXXD-OUT MAX ramps full-width loading surface
  • Jacks: Dual Lippert hydraulic jacks
  • Cargo Management: Sliding ratchet bar with 1 ratchet per 4'
  • Solar: 7-watt solar battery charging system
  • Power: Battery power pack and NOCO battery charger
  • Control: Wireless remote with hydraulic and power options
  • Lighting: Flushmount LED lights and 2 rear-facing cargo lights
  • Wiring: Sealed wiring harness
  • Coupler: 2-5/16" 30K round gooseneck coupler
  • Warranty: 5 year structural, 2 year comprehensive
  • Model Number: LDX10240
