3 Best Trailers for Pallet Freight: Specs, Deck Size & GVWR

Key Takeaways

• The right trailer for pallet freight comes down to how much your freight weighs, not how long the deck runs.

• GVWR and payload capacity are two different numbers, and planning your loads against the wrong one leads to overloaded trailers and compliance problems.

• For pallet loads up to 12,150 lbs, the MAXX-D TOB10222 and DOX10224 are the two strongest bumper pull options available at Poplar Bluff Trailer.

• For loads pushing 14,000 to 17,000 lbs, the Diamond C DET210's 23,000 lb GVWR is the right step up, and Poplar Bluff Trailer carries it in stock.

• Poplar Bluff Trailer updates inventory daily and stocks all three trailers, so you can browse live inventory, inspect on-site, and drive off the same day.

What Are the Best Trailers for Pallet Freight?

For pallet freight, three bumper pull deckovers stand out: the MAXX-D TOB10222, MAXX-D DOX10224, and Diamond C DET210, spanning 22 to 26 feet of deck space with up to 17,130 lbs of usable payload. The DET210 carries roughly 5,000 lbs more than either MAXX-D, making payload the sharpest dividing line between them.

Each trailer fits a different load profile, from short-haul pallet runs to dense freight that pushes the limits of what a bumper pull can carry. Poplar Bluff Trailer stocks all three, so the specs below reflect units you can inspect, buy, and haul today, not factory-order lead times.

Which Trailers Are Best for Pallet Freight?

MAXX-D and Diamond C trailers are available at Poplar Bluff Trailer.

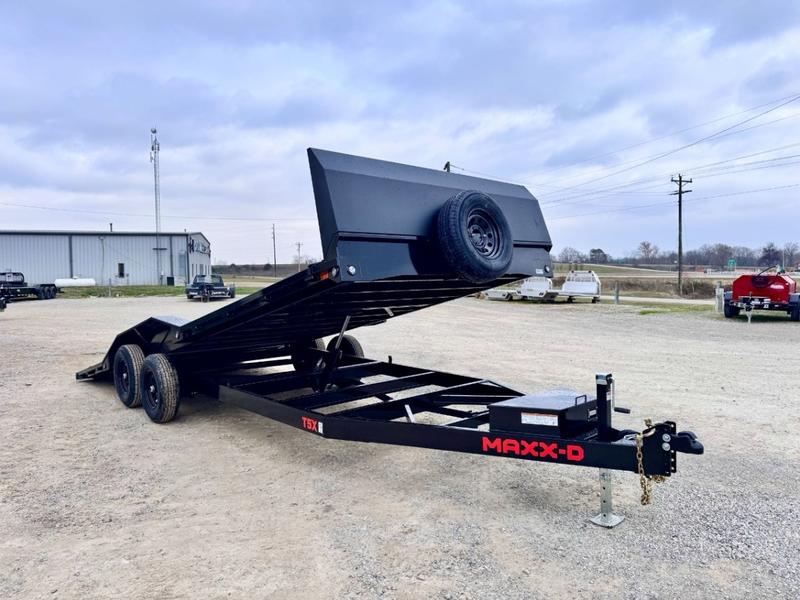

1. MAXX-D TOB10222 102" x 22' Power Tilt Deckover 17.5k

The MAXX-D TOB10222 is a full-deck power tilt deckover trailer for operators who need a compact platform that loads fast and hauls heavy. At 22 feet long and 102 inches wide, it hits the sweet spot for short-haul pallet freight without the extra length that can complicate maneuvering.

Key Specs

• Model: TOB Power Tilt Deckover

• Dimensions: 102" Wide x 22' Long

• GVWR: 17,500 lbs

• Payload Capacity: 12,100 lbs

• Hitch Type: Bumper Pull

• Axles: 2 x 8,000 lb Electric Brake Axles

• Suspension: Slipper Spring

• Tires: (4) ST215/75R17.5 H Tires (16-Ply Rated)

• Deck Style: Full Deck Power Tilt with Knife Edge Rear

• Main Frame: 10" x 12lb I-Beam

• Outer Frame: 6" Channel

• Cross-Members: 3" Channel on 16" Centers

• Floor: 2x8 Treated Wood

• Tilt Control: Wireless Remote

• Color: Wet Black & Primer

Deck Size and Pallet Capacity

At 102" wide and 22 feet long, the TOB10222 fits roughly 10 to 11 standard GMA pallets (48" x 40") loaded two across. The knife edge rear lets forklifts and pallet jacks roll onto the deck without a step-up, and the full-deck tilt lowers the bed to grade for barrier-free loading.

GVWR and Payload: 17,500 lb GVWR With 12,100 lb Payload

The TOB10222 carries a 17,500 lb GVWR with 12,100 lbs of usable payload after the trailer's own weight is subtracted. Loaded GMA pallets typically range from a few hundred pounds up to roughly 4,600 lbs (the standard dynamic load capacity), so expect 5 to 8 pallets by weight before hitting the ceiling. The dual 8,000 lb axles handle stopping duties when running near that limit.

2. MAXX-D DOX10224 24' x 102" 17.5k Deckover Equipment Trailer

The MAXX-D DOX10224 steps up the deck length to 24 feet on the same 102" wide platform. Unlike the TOB10222, it uses a 4-foot dovetail with MAXX-D ramps, making it the better fit for mixed freight that includes palletized and wheeled equipment.

Key Specs

• Model: DOX Deckover Equipment Trailer

• Dimensions: 102" Wide x 24' Long

• GVWR: 17,500 lbs

• Payload Capacity: 12,150 lbs

• Hitch Type: Bumper Pull

• Coupler: 2-5/16" Adjustable Coupler

• Jack: 1 x 10K Drop-Leg Jack

• Axles: 2 x 8,000 lb Electric Brake Axles

• Suspension: Slipper Spring

• Tires: (4) ST215/75R17.5

• Frame: 10" x 12lb I-Beam Main Frame, 6" Channel Outer Frame

• Tongue: I-Beam with Integrated Toolbox

• Dovetail: 4' Dovetail with MAXX-D Out Ramps

• Floor: 2x8 Treated Wood

Deck Size and Pallet Capacity

The usable 20-foot flat deck (accounting for the 4-foot dovetail) fits approximately 10 standard GMA pallets loaded two across (5 rows of 2), with additional space on the dovetail depending on weight distribution. The 10" x 12lb I-beam main frame adds rigidity under concentrated pallet loads, reducing deck flex compared to lighter channel-frame builds.

GVWR and Payload: 17,500 lb GVWR With 12,150 lb Payload

The DOX10224 carries the same 17,500 lb GVWR as the TOB10222 with a marginally higher 12,150 lb payload. The added deck length lets you spread loads more evenly across more pallets, useful when cube space rather than weight is the limiting factor. The 2-5/16" adjustable coupler and 10K drop-leg jack make hookup clean and simple with most Class 4 through Class 5 tow vehicles.

The MAXX-D DOX10224 and TOB10222 are available at Poplar Bluff Trailer.

3. Diamond C DET210 102" x 26' Deckover Power Tilt 23k

The Diamond C DET210 is built for operators hauling near the top of what a bumper pull can carry. With a 23,000 lb GVWR and 17,130 lb payload across 26 feet, spec this when pallet weight drives every load.

Key Specs

• Model: DET Deckover Power Tilt

• Dimensions: 102" Wide x 26' Total Length (6' Stationary Deck + 20' Tilt Bed)

• GVWR: 23,000 lbs

• Payload Capacity: 17,130 lbs

• Hitch Type: Bumper Pull

• Axles: 2 x 10,000 lb Electric Drum Brake Axles

• Floor: 2" Treated Wood

• Tilt System: Full Deck Electric/Hydraulic Powered Tilt

• Tilt Control: Bluetooth Wireless Controller

• Jack: Single 20,000 lb Hydraulic Jack

• Solar: 7-Watt SolarPulse Charging System

• Lighting: All LED Package

• Color: Onyx Black DM Powder Coating System

• Storage: 10" x 12" x 53" Under-Slung Component Box

• Access: Front Retractable Steps with Integrated Light/Step Combo

Deck Size and Pallet Capacity

The 26-foot deck splits into a 6-foot stationary section and a 20-foot tilt bed, fitting roughly 12 standard GMA pallets loaded two across (6 rows of 2). The Bluetooth controller and 20,000 lb hydraulic jack provide smartphone-level tilt control and stable loading conditions.

GVWR and Payload: 23,000 lb GVWR With 17,130 lb Payload

At 17,130 lbs of usable payload, the DET210 carries roughly 5,000 lbs more than either MAXX-D option. The dual 10,000 lb drum brake axles deliver more stopping force than the 8,000 lb axles on the MAXX-D trailers. For dense freight like steel or bagged aggregates, that extra payload means fewer trips and lower per-load costs.

Choose any of the three trailers for pallet freight.

Side-by-Side Comparison Table

Get Your Next Trailer at Poplar Bluff Trailer

The right trailer comes down to one question: how much does your freight weigh? The MAXX-D TOB10222 and DOX10224 handle most pallet loads up to 12,150 lbs, while the Diamond C DET210 steps up to roughly 17,130 lbs for operators who haul near the top of what a bumper pull can carry.

All three trailers are in stock at our Poplar Bluff, MO location, ready to inspect and drive off the lot today. We sell 100 to 120 trailers a month and update inventory daily, so what you see is available. Browse our live inventory or stop in and we will get you matched.

View Poplar Bluff Trailer's full inventory.

Frequently Asked Questions (FAQs)

How Many Pallets Fit on a 22-Foot Deckover Trailer?

A 22-foot deckover trailer with a 102" wide deck, like the MAXX-D TOB10222, fits approximately 10 standard GMA pallets loaded two across (5 rows of 2). Portrait orientation gives you two columns of five down the deck, with a small amount of space to spare. Always verify your loaded weight stays within the 12,100 lb payload limit before finalizing your load.

What GVWR Do I Need for a Full Pallet Load?

Your required GVWR depends on the combined weight of the trailer and freight you're hauling. Loads that consistently exceed 10,000 lbs call for at least a 17,500 lb GVWR trailer like either MAXX-D option; for loads pushing 14,000 to 16,000 lbs, the Diamond C DET210 at 23,000 lb GVWR is the right starting point. Never size GVWR to exactly your anticipated load; always build in margin for legal compliance.

Is a Power Tilt Trailer Better Than a Ramp Trailer for Pallets?

For pallet freight using forklifts or ride-on pallet jacks, a power tilt trailer is the stronger choice. The full-deck tilt drops to grade and creates a zero-step transition forklifts drive directly onto. Ramp trailers like the MAXX-D DOX10224 suit mixed-use operations better, where loads include both palletized freight and wheeled equipment. If pallets are your primary freight, tilt wins on speed and safety; if you need flexibility across load types, a ramp configuration makes more sense.

What Is the Difference Between Payload Capacity and GVWR?

GVWR is the maximum allowable total weight of the trailer plus its load, while payload capacity is what remains after subtracting the trailer's own weight. The Diamond C DET210 has a 23,000 lb GVWR, but the usable freight budget comes out to 17,130 lbs. Confusing the two is one of the most common spec errors in trailer selection, so always plan loads against payload capacity.

What Trailer Brands Are Available at Poplar Bluff Trailer?

Poplar Bluff Trailer carries MAXX-D and Diamond C, two well-regarded names in heavy-duty trailer manufacturing. MAXX-D trailers come standard with slipper spring suspension, electric brake axles, and treated wood flooring. Diamond C trailers add Bluetooth tilt control, SolarPulse battery maintenance, and hydraulic jacks. Both brands are in stock at Poplar Bluff, MO, ready to inspect and drive off the lot.
