3 Best Hydraulic Dovetail Gooseneck Trailers: Specs, Price & Brands

Key Takeaways

• Hydraulic dovetail trailers simplify equipment loading by lowering the approach angle, making them a practical choice for tracked machines, low-clearance equipment, and frequent loading operations.

• The YDB10234 delivers a balanced platform for operators hauling equipment in the mid-tier range, with a 34-foot deck length that handles single-machine loads while remaining maneuverable for job-site access.

• The YHB10240 offers serious commercial capacity, with a 40,000-lb GVWR and EOH axle control that gives operators precise hydraulic control from the cab when moving full-size excavators and dozers.

• The YDX10232 stands out for payload efficiency, using an engineered frame design to deliver 16,726 lbs of usable capacity on a compact 32-foot platform paired with Lippert jacks known for long-term reliability.

• Poplar Bluff Trailer carries all three hydraulic dovetail models and provides real-time inventory, financing options, and expert guidance to help you choose the right trailer for your operation.

The Best Hydraulic Dovetail Gooseneck Trailers: Quick Overview

The three best hydraulic dovetail gooseneck trailers are the MAXX-D YDB10234 (25.9k GVWR, 34-foot deck), the MAXX-D YHB10240 (40k GVWR, 40-foot deck), and the MAXX-D YDX10232 (25.9k GVWR, engineered frame). These models deliver multiple capacity tiers for different operator profiles, from mid-range equipment hauling to heavy commercial work. MAXX-D builds hydraulic dovetails for operators who demand reliable heavy-haul performance across a full range of capacities and deck configurations.

The YDB10234 and YDX10232 share the same GVWR but serve distinct needs: the YDB10234 optimizes deck length and versatility, while the YDX10232 maximizes payload density through engineered frame construction.

The YHB10240 operates in a completely different weight class, with a 40,000-lb GVWR and 28,285-lb payload, designed for operators moving full-size excavators and dozers. Cash pricing ranges from $24,998 to $37,998. This guide breaks down specs, payload, and pricing to match the trailer to your daily workload.

1. 2027 MAXX-D Trailers YDB10234 34' x 102" 30k Gooseneck Hydraulic Dovetail

The YDB10234's 34-foot deck provides enough platform length for most single-machine loads while staying maneuverable on tight job sites.

The MAXX-D YDB10234 is a tandem dual hydraulic dovetail built for operators who need reliable heavy-haul performance in a 34-foot package. With a GVWR of 25,990 lbs and a payload capacity of 15,905 lbs, this trailer handles the working loads that show up on job sites daily without cutting corners on the frame or braking system.

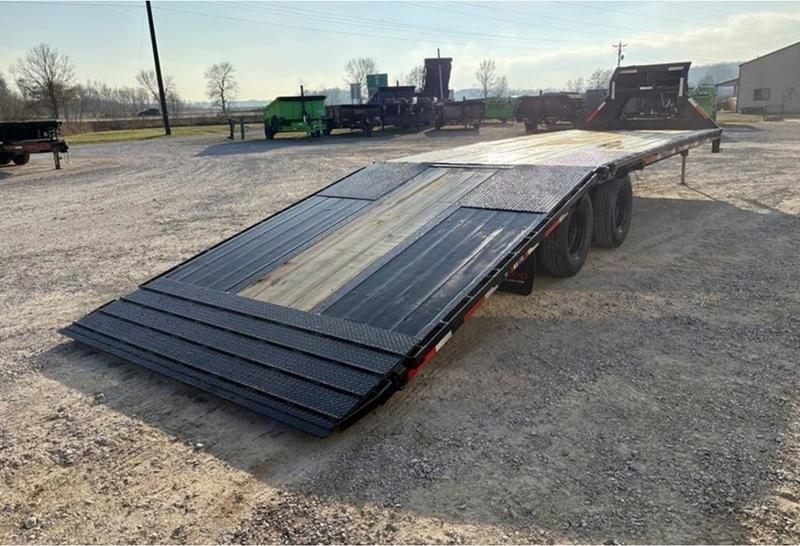

The 34-foot deck, 102 inches wide, gives you the room you need to center a wide machine without stress. The hydraulic dovetail tail section lowers to the ground on its own, which reduces the load angle significantly compared to fixed dovetails. That matters most when you're loading low-clearance equipment or tracked machines that can't take a steep approach angle.

Key Specs at a Glance

• Model: YDB10234

• Year: 2027

• Dimensions: 34' x 102"

• GVWR: 25,990 lbs

• Payload Capacity: 15,905 lbs

• Coupler: 2 5/16" 30K Round Gooseneck Coupler

• Frame: 12" x 22LB I-Beam Frame with Torque Tube

• Brakes: 15k Disc Brakes

• Jacks: 2 Hydraulic Jacks

The 15k disc brakes are a standout feature. On a loaded 25.9k trailer, drum brakes can fade under repeated hard stops, but disc brakes maintain consistent stopping power regardless of heat buildup. This is a real safety advantage on hilly terrain or in stop-and-go traffic when fully loaded.

Best For

The YDB10234 suits contractors and equipment operators regularly hauling mid-to-large tracked machines, wheel loaders, or skid steers in the 12,000 to 15,000 lb range. The 34-foot deck length hits a sweet spot. It’s long enough for most single-machine loads and manageable enough for everyday transport without needing a CDL-level rig in most configurations.

Price

The 2027 MAXX-D YDB10234 retails for $34,995 and is available at Poplar Bluff Trailer for $30,488.

2. 2027 MAXX-D Trailers YHB10240 40' x 102" 40k Gooseneck Hydraulic Dovetail with 16k Disc Brakes

The YHB10240's 40,000-lb GVWR and 28,285-lb payload capacity eliminate guesswork when loading full-size excavators and dozers at commercial job sites.

The MAXX-D YHB10240 is a 40-foot, 40,000 lb GVWR hydraulic dovetail gooseneck with 16k EOH (Electric Over Hydraulic) axles, built for operators who regularly move large excavators, full-size dozers, or multiple pieces of equipment in a single haul. With a payload capacity of 28,285 lbs, it's in a completely different weight class than the YDB10234.

The jump from 25,990 lbs GVWR to 40,000 lbs GVWR means a heavier frame, larger axles, and a more robust hydraulic system rated for sustained heavy use. The 16k disc brakes on each axle deliver serious stopping force, and the EOH axle system means hydraulic functions are electrically triggered, giving the operator precise control from the cab.

Key Specs at a Glance

• Model: YHB10240

• Year: 2027

• Dimensions: 40' x 102"

• GVWR: 40,000 lbs

• Payload Capacity: 28,285 lbs

• Coupler: 2 5/16" 40K Round Gooseneck Coupler

• Frame: Engineered I-Beam Frame with Torque Tube

• Brakes: 16k Disc Brakes (Electric Over Hydraulic)

• Jacks: 2 Hydraulic Jacks

The 28,285 lb payload capacity on this model means you're not constantly second-guessing whether your load is within limits. For operators regularly moving equipment in the 20,000 to 28,000 lb range, the payload flexibility pays for itself in efficiency and reduced wear from rough loading angles.

Best For

The YHB10240 is built for heavy equipment operators moving full-size excavators, large track dozers, motor graders, or situations where maximum payload flexibility is non-negotiable. The 40-foot deck accommodates longer machines, and the 28,285 lb payload means you can load with confidence on every job. If your work regularly involves equipment at the upper end of this weight range, this trailer delivers the reliability needed for professional heavy-haul operations.

Price

The 2027 MAXX-D YHB10240 retails for $42,995 and is available at Poplar Bluff Trailer for $37,998.

3. 2026 MAXX-D Trailers YDX10232 32' x 102" 25.9k Gooseneck Hydraulic Dovetail Engineered Frame

The YDX10232's Lippert hydraulic jacks deliver reliable operation under heavy loads, a critical detail when unhitching on uneven terrain.

The 2026 YDX10232 comes in at 25,990 lbs GVWR with a payload capacity of 16,726 lbs, and that payload is actually higher than some 30k-rated trailers because of how the weight is distributed across the engineered frame. If your loads consistently run in the 14,000 to 16,000 lb range, this model delivers value without over-buying on capacity you'll never use.

This trailer runs a 32' x 102" deck with a 2 5/16" 30K round gooseneck coupler and Lippert hydraulic jacks. The engineered neck and frame with a torque tube maintain high structural integrity, even at the lower GVWR rating.

Key Specs at a Glance

• Model: YDX10232

• Year: 2026

• Dimensions: 32' x 102"

• GVWR: 25,990 lbs

• Payload Capacity: 16,726 lbs

• Coupler: 2 5/16" 30K Round Gooseneck Coupler

• Frame: Engineered Frame with Torque Tube

• Jacks: 2 Lippert Hydraulic Jacks

The Lippert hydraulic jacks on this model are worth calling out specifically. Lippert is one of the most trusted names in trailer component manufacturing, and their jacks are built for consistent, reliable operation under heavy loads. When you're unhitching on uneven ground, jack quality matters more than most buyers realize.

Best For

This is the go-to option for buyers who want premium frame engineering and hydraulic convenience at a strong value. It suits landscaping contractors, rental yards, and agricultural operations that consistently haul tractors, skid steers, or mid-size excavators in the 14,000 to 16,000 lb range.

Price

The 2026 MAXX-D YDX10232 retails for $29,995 and is available at Poplar Bluff Trailer for $24,998.

Best Hydraulic Dovetail Gooseneck Trailers: Summary Table

Find the Right Hydraulic Dovetail Gooseneck at Poplar Bluff Trailer

Choosing the right hydraulic dovetail gooseneck comes down to matching capacity, deck length, and payload density to the equipment you move daily. The YDB10234 and YDX10232 share a 25.9k GVWR but serve different priorities: the YDB10234 is optimized for 34-foot versatility, while the YDX10232 maximizes payload density on a compact 32-foot platform with engineered frame construction. The YHB10240 steps into a heavier class, delivering 40,000 lbs of capacity and 28,285 lbs of payload for operators consistently moving full-size excavators, dozers, and motor graders.

At Poplar Bluff Trailer, we move 100 to 120 trailers monthly across Missouri, Illinois, and the Mid-South, with all three MAXX-D hydraulic dovetail models available in our current inventory. Our reputation is built on real-time stock accuracy, competitive cash pricing that reflects high-volume dealer efficiency, and straightforward online financing that gets qualified buyers from first contact to pickup in just one to five days. We also offer free in-store pickup and delivery options for a fee to most areas in the Midwest.

Browse our live inventory now and lock in the right MAXX-D hydraulic dovetail for your operation.

Frequently Asked Questions (FAQs)

What is the weight capacity of a hydraulic dovetail gooseneck trailer?

Weight capacity varies by model: the MAXX-D YDX10232 runs 25,990 lbs GVWR with 16,726 lbs payload, while the MAXX-D YDB10234 delivers the same GVWR at 15,905 lbs payload. The MAXX-D YHB10240 tops out at 40,000 lbs GVWR. Always calculate your loaded equipment weight, including attachments, before selecting a GVWR rating.

How does a hydraulic dovetail work on a gooseneck trailer?

A hydraulic dovetail uses a powered cylinder to lower the rear deck section to ground level when you're ready to load, creating a shallow ramp angle so equipment drives up without hanging on a steep transition. Once the load is aboard, the tail raises to a flat transport position and locks in place for highway travel.

What truck do I need to pull a 30k gooseneck trailer?

To legally tow a 30,000 lb GVWR gooseneck, you need a truck rated for that capacity. Most heavy-duty one-ton pickup trucks are rated for 30,000 to 36,000 lbs of gooseneck towing capacity, depending on the powertrain and configuration. Always verify your specific truck's tow rating from the door-jamb sticker or manufacturer spec sheet, as dually configurations and diesel powertrains typically deliver the highest ratings in this class.

Why do experienced buyers choose Poplar Bluff Trailer for hydraulic dovetail goosenecks?

Poplar Bluff Trailer prioritizes live daily inventory, accurate stock confirmation, straightforward cash pricing, and a purchase-to-pickup timeline that typically closes within one to five days. Our customers are contractors, equipment operators, and haulers who understand their payload requirements and want fast approvals, simple financing, and clear logistics on every transaction.

*Note: Prices shown are estimates based on current market conditions at the time of writing and may change without notice. Confirm trailer availability, specifications, and final pricing directly with Poplar Bluff Trailer.
